GNUstep development tools : a basic tutorial

This tutorial will introduce you to creating a GNUstep application using ProjectCenter and Gorm.

Creating an App

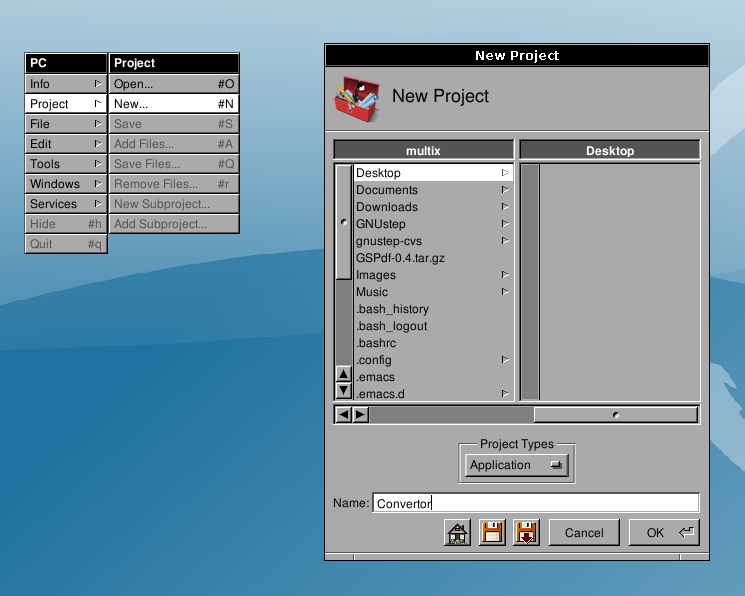

Launch ProjectCenter.app and select Project->New. In the "New Project..." dialog, select Application.
Select the location of your application , give it a name (here we chose "Converter") and press OK.

Creating an Application Project

Editing the interface file

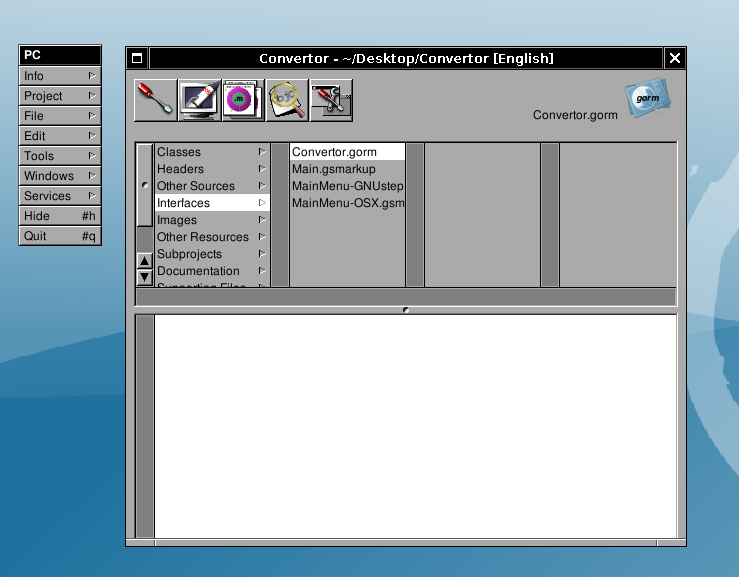

Select Interfaces in the main window browser. The project interface files will appear. Depending on the version of ProjectCenter you might find several versions of the interface (renaissance markup, for example). Since we are concentrating on the graphical editor Grom, you may safely remove the the other interfaces from the project with Project->Remove Files and using "Project and Disk".
Select Convertor.gorm (or name_of_your_app.gorm) and click on it. That should launch Gorm automatically and open the file.

Editing the interface

Gorm first contact

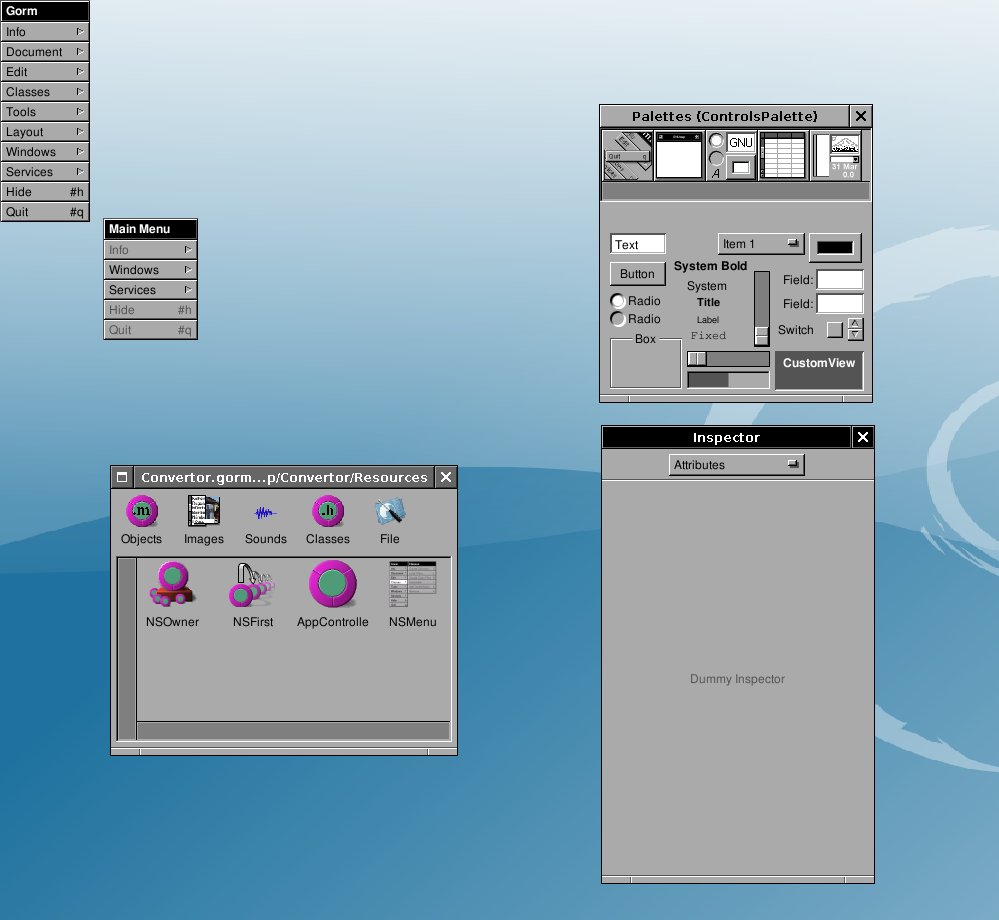

Here is what you'll get once you've double-clicked the .gorm file.

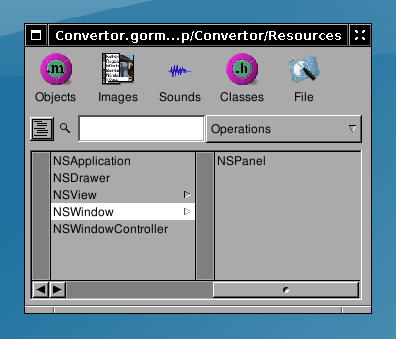

First contact with Gorm.app

If the Palettes and Tools don't display automatically for you, show them using: Select Tools->Inspector... and Tools->Palettes...

Displaying Inspector & Palettes


Then you'll see the Palettes and Insepector windows.
The Palettes Window contains many palettes. Each of the palettes contains components which can be drag-and-dropped to the interface window.

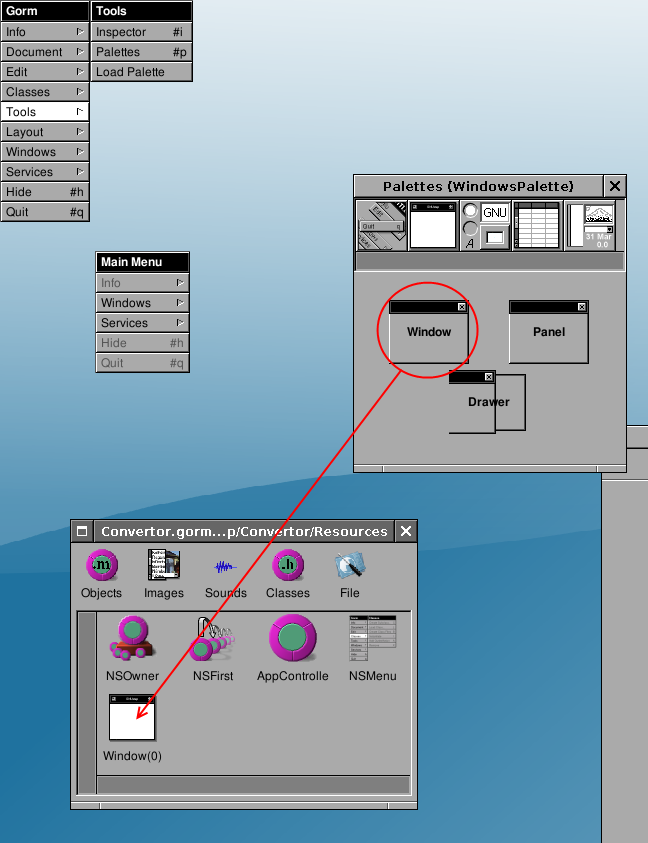

From the Windows Palette, drag a "Window" into the Gorm Document. A Window will be instantiated and shown.


Creating the Window

Rename the title of "My Window" to, for example, "Converter".
To do that, check in the Inspector, the Title property. Change it to the name you need (e.g. Converter) and hit enter. The title of the instantiated Window will automatically change.
You may also want to change the name of the Window Object. Although this does not have effect for the user interface, it helps when having many windows and objects instantiated to identify the correct one. Select it and choose Edit->SetName. Set it to something like MainWin: the name is for identification purposes only.
In the Attributes of the Window also tick the Visible at launch time Option. This will show the window automatically when the application is launched.

Creating the interface

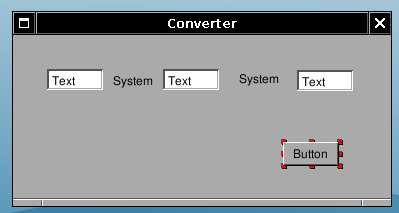

Try to drag-and-drop some Text, Title and Button components to the Converter window. Drag the items you need from the Palette (Controls Palette). Move things in order to obtain an interface that looks close to the following one. Resize the Controls and the window using the Handles.

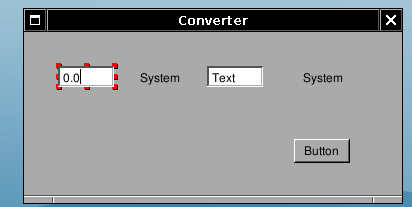

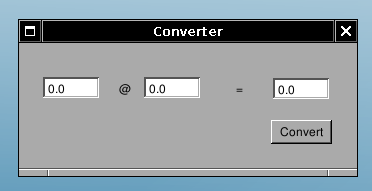

The interface

You can change the values of the control strings by directly double-clicking and doing in-line editing. Don't forget to press "Enter" or to click OK once you've finished editing the value.

Changing the texts and labels

Change the string values of the components to obtain the following.

The final look

You can readjust the sizes to match the new labels, guidelines will appear to help you aligning the elements and you can also use the arrow keys to do precise movements.

Creating a subclass

Now select the "Classes" part of the main window. Select the NSObject class and do Classes->Create Subclass..., in order to create a subclass of NSObject. It will be called "NewClass"

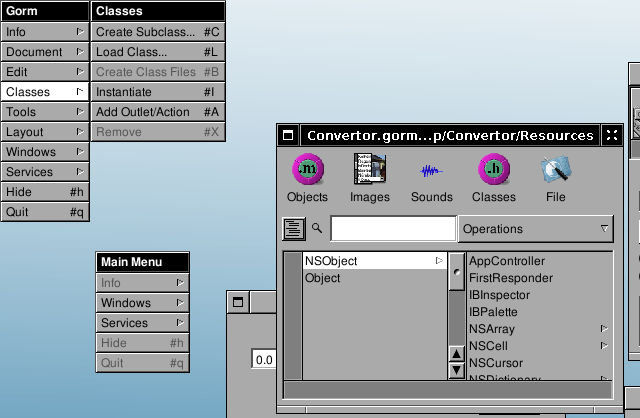

The class browser Creating a subclass

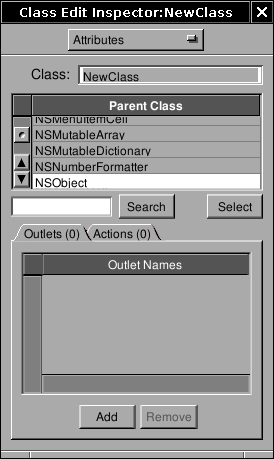

You should then see the following inspector window. If not select the new class (which should still be called NewClass) in the class browser of the main window, and do Classes->Edit Class...
Rename the class from NewClass to ConvertorManager (don't forget to press Enter, or your change will not affect anything).

The class inspector

Adding outlets & actions

Now let's add some outlets. Outlets are basically instance variables of the class that you will connect to interface's components at design time. Outlets represent the components you want to work with and of which you need to work in the code. Connecting them means interfacing the code with the gorm interface. To edit Outlets you need  select ConvertorManager and get back into the Classes view, the Inspector will change accordingly.

So add three outlets : "amount", "rate", "result". Adding an outlet creates a new outlet called newOutlet: rename it by double-clicking and in-line editing.

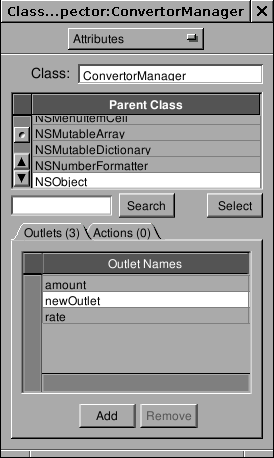

Adding outlets

You will now create an action. An action is an object method which can be linked to interface's component at design time, so that a specific action on the component will get this method to be called. Actions specify interaction from the interface to the code, they are methods to which the interface will send messages. Actions carry as a parameter a sender which is the control generating the call.
Add one action named "convert:", please notice the ":" at the end.

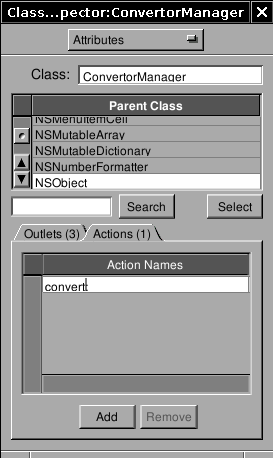

Adding actions

Instantiating the class

Now that we have defined the class's outlets and actions, we need to instantiate it. Do select Classes->Instantiate. Doing this tells GNUstep to create an instance of this class when the application is launched (to be more precise, when the nib/gorm file is loaded.) You should now see a new object (ConvertorManager) in the Objects part of Gorm's main panel.

Connecting outlets and actions

We now need to connect the outlets of the instance of ConvertorManager we have created to their corresponding components. As you may have guessed, the amount outlet is to be connected to the first text field, rate to the second and result to the third.
Done that, the ConvertorManager instance will be able to access those fields by using its instance variables. You will not have any code to write to have those connections up and working.
To connect the amount outlet to the first text field, you have to drag-and-drop while pressing the Control key from the ConvertorManager instance (the instance is in the Classes part of Gorm's main panel) to the first text field. Little S and T icons will appear showing who is the Source and who is the Target (those icons always appear in the bottom-left corner, if they are not then you are probably not selecting the component you want to select).
After drag-and-dropping, you have to select which outlet of the Source you want to connect to the target, do this by clicking the correct outlet in the Outlets column of the Inspector and by pressing the connect button. Do this for all three outlets amount, rate, result.

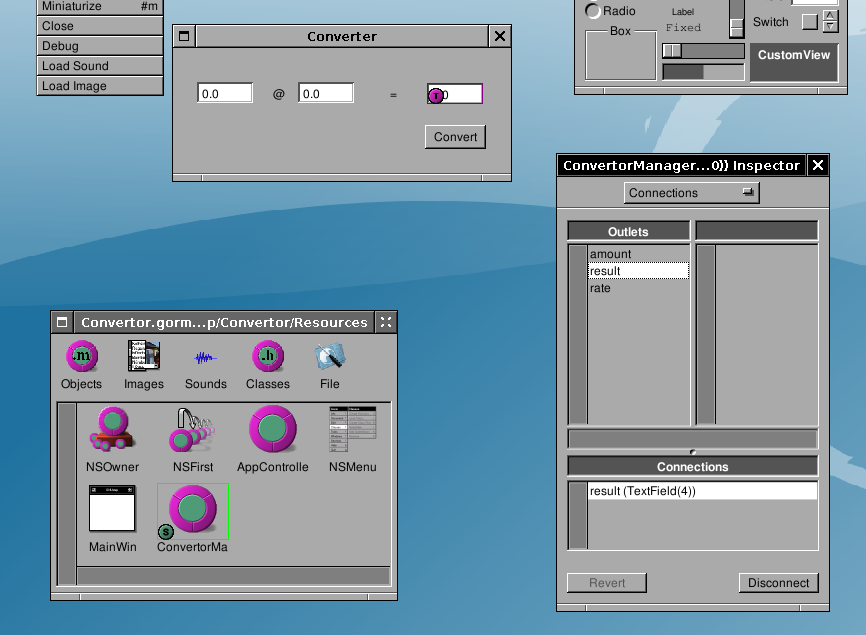

Setting the result outlet

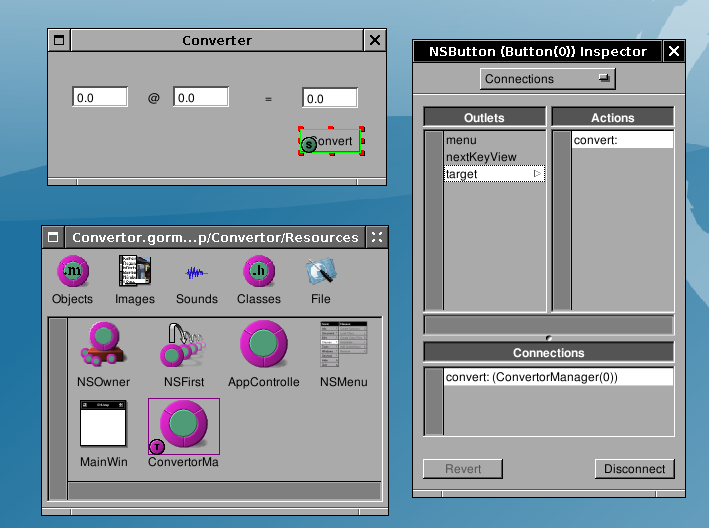

Connecting an action is a similar operation. Do a drag-and-drop with the control key pressed, from the Convert button to the instance of ConvertorManager. Then click target in the Outlets part of the inspector, all available actions of the target (here the ConvertorManager instance which has only one action) will appear in the Actions column. Click on the convert: action, and press the connect button. Now, every time the convert button is pressed it send a  convert: message to the instance of ConvertorManager. The sender will be the Button.

Setting the convert: action

Creating the class's source and header files

Gorm.app can automatically create the skeleton of the class you've designed: select the ConvertorManager class in the Classes panel of the main window, and do Classes->Create Class's Files.

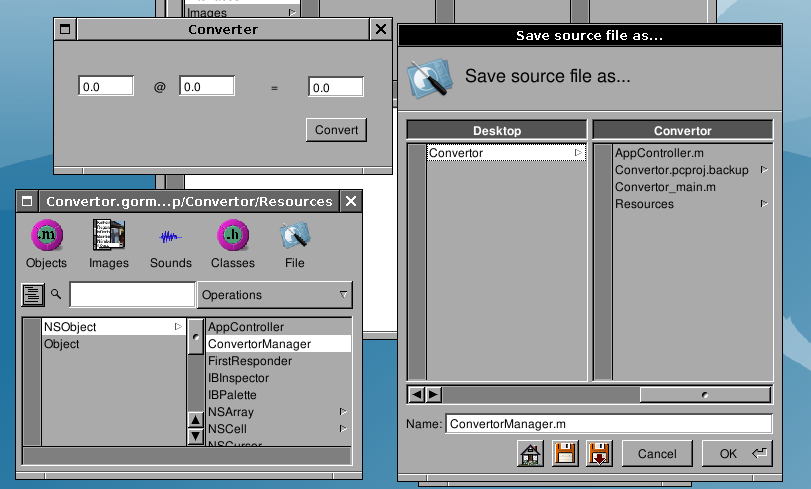

Two successive Save Panels will pop up for the .m and the .h files. Gorm will propose as file names ConvertorManager.m and ConvertorManager.h, it is a good convetion to use the class name as a filename. Save those files into the Project directory.

You may also safely delete the "AppController" object instance if you have it in your Gorm file.

Once this is done, remember to save the interface if you haven't yet, and go back to ProjectCenter.app.

Creating the class's source and header files

Adding the class's source and header files to the current project

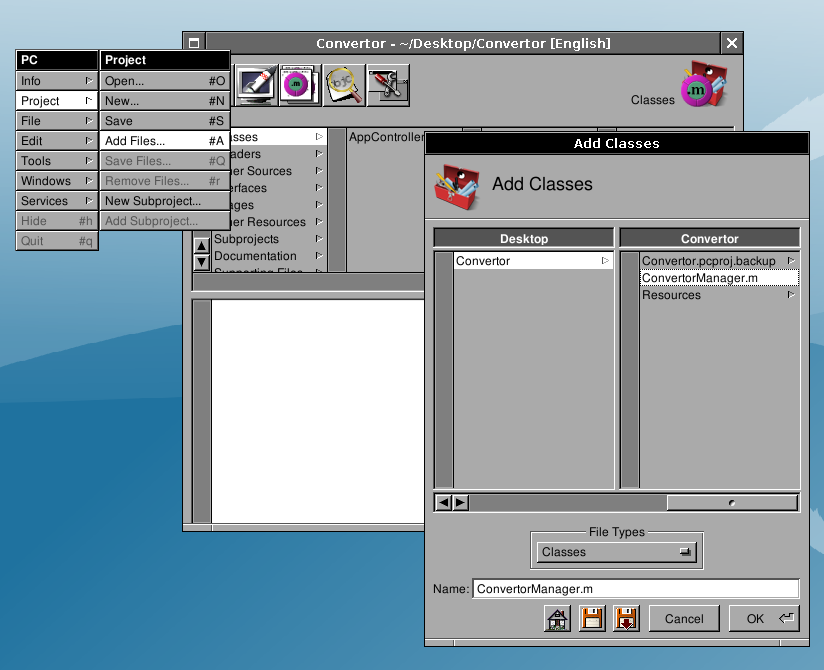

You now need to add the class's files to the project. Double-click "Classes" in the first column of the browser, choose the .m file to add to the project (ConvertorManager.m); the corresponding header file will be automatically added for you.

Adding the class's source and header files to the project

Writing the convert: method

Open the ConvertorManager.m file by slecting its name within ProjectCenter.app browser. YOu can display the file in the embedded view or, alternatively, double-clicking will open it in a separate editor.

You should see the following :
/* All Rights reserved */

#import <AppKit/AppKit.h>
#import "ConvertorManager.h"

@implementation ConvertorManager

- (void) convert: (id) sender
{
/* insert your code here */
}

@end
Add the following inside the convert: method:
[result setFloatValue: [rate floatValue] * [amount floatValue]];
or if you want to have a nicer dispaying :

[result setStringValue: [NSString stringWithFormat: @"%1.2f",
[amount floatValue] * [rate floatValue]]];
Save the file.

Editing the class

You may safely remove the AppController class from your project, we are not using it.

Compiling and running

Click Compiling Panel Button to dispay the building panel. Then click Build Button to build the project. If there is no errors (and hopefully there is none), you can run the application. To do it, click Run Panel Button to display the run panel. Then click the first button (at this time it has still no icon), this should launch the application :

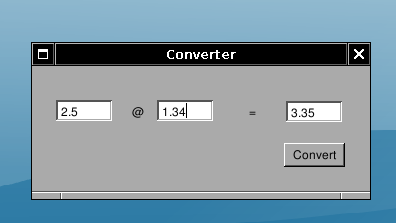

Converter.app running
Convertor.app in action, converting between Euro and US Dollar.

Congratulations, you have made your first GNUstep application.


Initial writing 07-07-2001
Modified 02-Feb-2005 by Alex Perez
Updated 13-Nov-2010 Riccardo Mottola
Copyright © 2001, 2005 Pierre-Yves Rivaille
